Guide to Dishwasher Automatic Door Opening

1. What is Automatic Door Opening?

Automatic Door Opening is a feature used in modern dishwashers where the door is automatically released and slightly opened at the end of the washing cycle.

The purpose is simple:
To improve drying performance by allowing hot, humid air to escape and fresh air to circulate.

This feature is widely adopted across major appliance brands and is often marketed as:
· Auto Open Dry
· AirDry
· AutoRelease
· OpenDry

2. Why Do Dishwashers Need Automatic Door Opening?

2.1 Improve Drying Efficiency

After washing, the dishwasher interior is hot and humid.

If the door remains closed:
· Steam condenses on dishes
· Water spots remain
· Plastic items dry slowly

Opening the door allows:
· Moist air to escape
· Ambient air to enter
· Faster natural drying

2.2 Energy Saving

Traditional drying relies on heating elements.

Automatic Door Opening enables:
· Natural air drying
· Reduced power consumption
· Better energy ratings

2.3 User Safety

Dishwasher temperatures can reach 70–80°C after washing.

Automatic systems:
· Delay opening until temperature drops
· Prevent steam burns
· Avoid direct user exposure

2.4 Better Hygiene

Closed humid environments may cause:
· Odor
· Bacteria growth

Automatic door opening reduces moisture retention and helps improve hygiene.

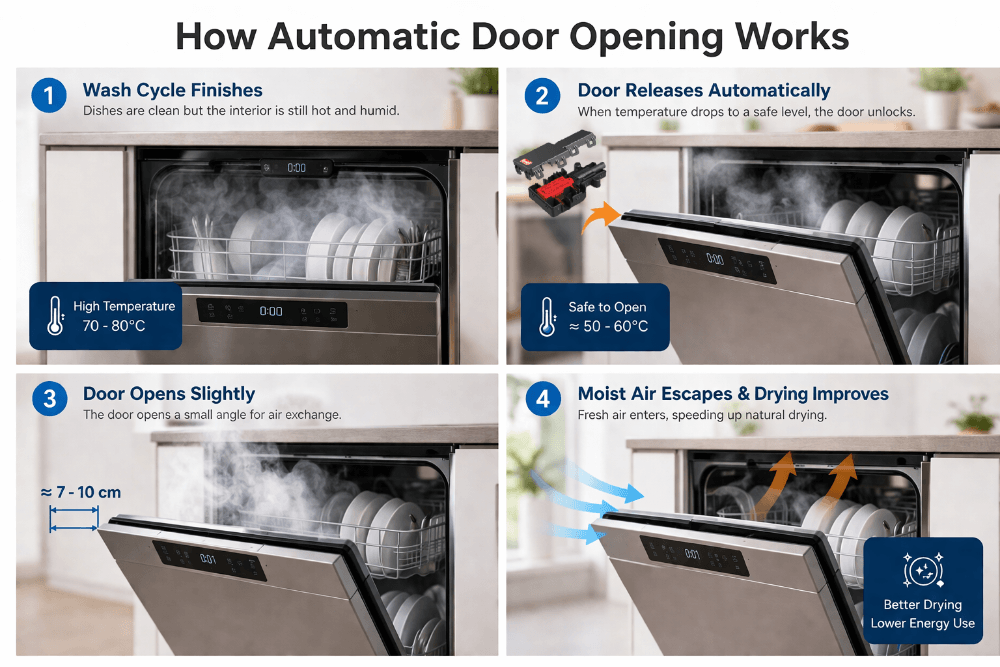

3. How Does an Automatic Door Opener (ADO) Work?

Wax motor-driven ADOs operate based on thermal expansion:
· Electrical current heats internal wax
· Wax expands and generates linear force
· The thermoactuator extends and pushes the plunger forward
· The dishwasher door lock is released, allowing the door to open slightly

Key characteristics:
· High force output
· Simple structure
· Reverse force protection
· Quiet and smooth operation

4. When Should the Door Open?

Optimal timing is critical:
· After full wash cycle completion
· After short delay (1–2 minutes)
· When temperature drops below ~60°C

This ensures:
· Safety
· Better drying
· Controlled steam release

5. Technical Requirements for Automatic Door Openers

A reliable ADO actuator must meet:

Force & Stroke
· ≥ 50 N output force typically required
· ≥ 12 mm stroke for effective release

Durability
· ≥ 10,000 cycles

Environmental Resistance
· High temperature
· High humidity
· Detergent exposure

Safety Features
· Anti-block / reverse force protection
· Controlled movement

6. Wax Motor vs Other Solutions

The main technologies used for automatic door opening include:

7. Why Wax Motor is Still Widely Used

Despite alternatives, wax motor remains preferred because:
· Provides high force while remaining compact
· Lower cost
· High reliability
· Proven in mass production

It is especially suitable for: “high-force, one-time actuation tasks” like dishwasher door release.

8. Conclusion

Automatic door opening is no longer a premium feature—it is becoming a standard solution driven by:
· Energy efficiency requirements
· User experience expectations
· Product differentiation

Wax motor–based ADOs provide a balanced solution between cost, performance, and reliability.
